Access from anywhere
Extensive Dashboard

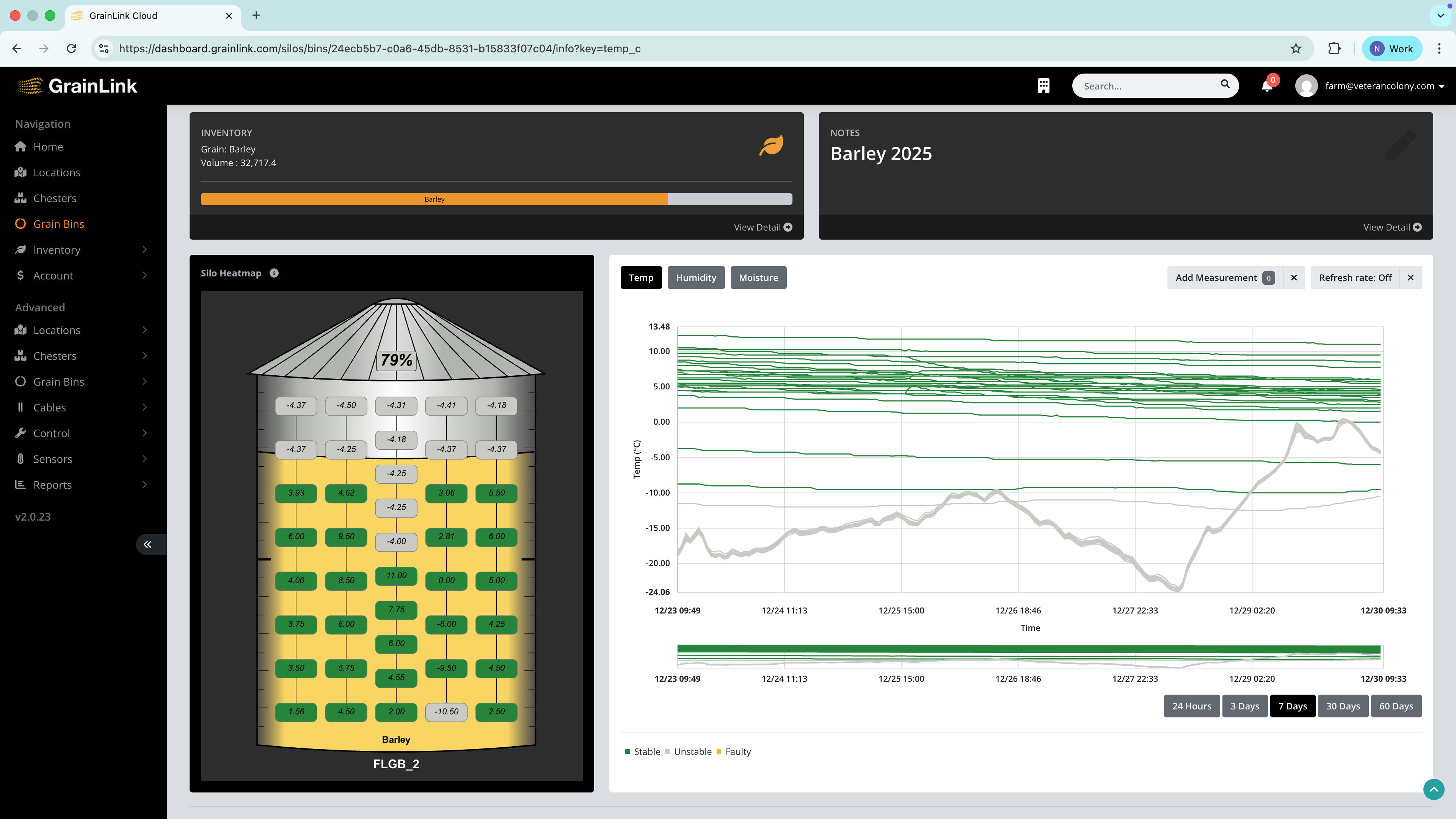

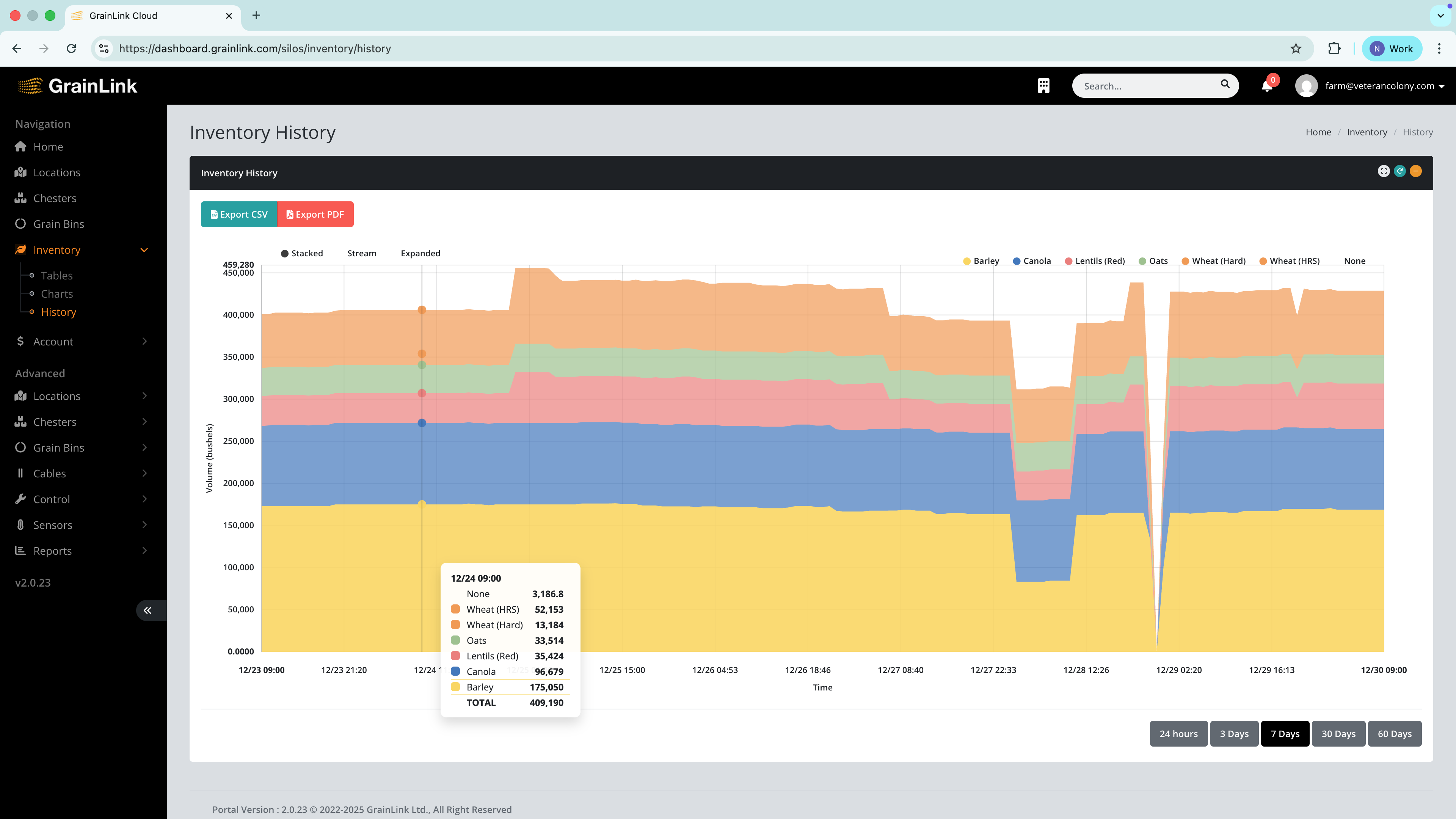

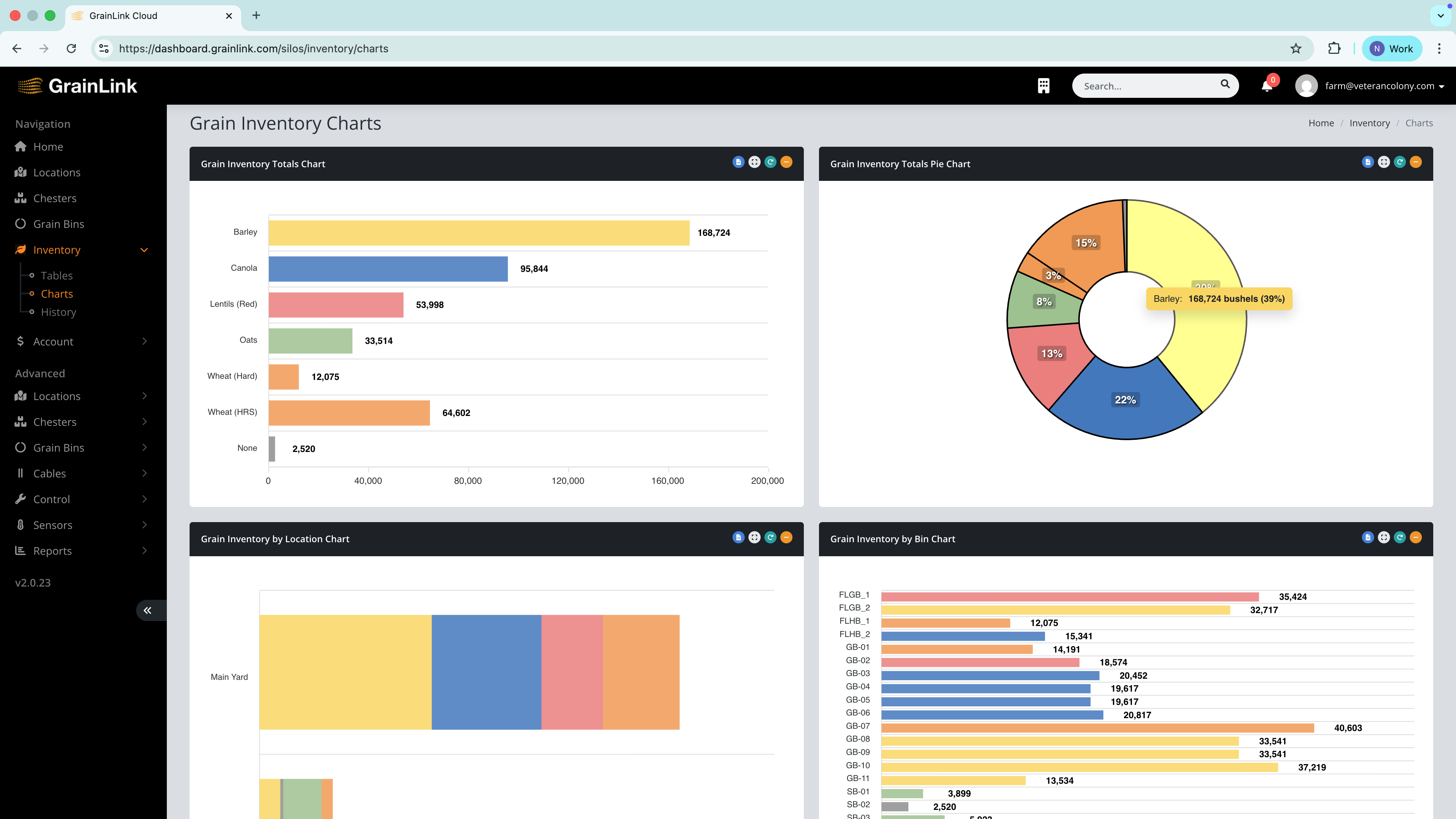

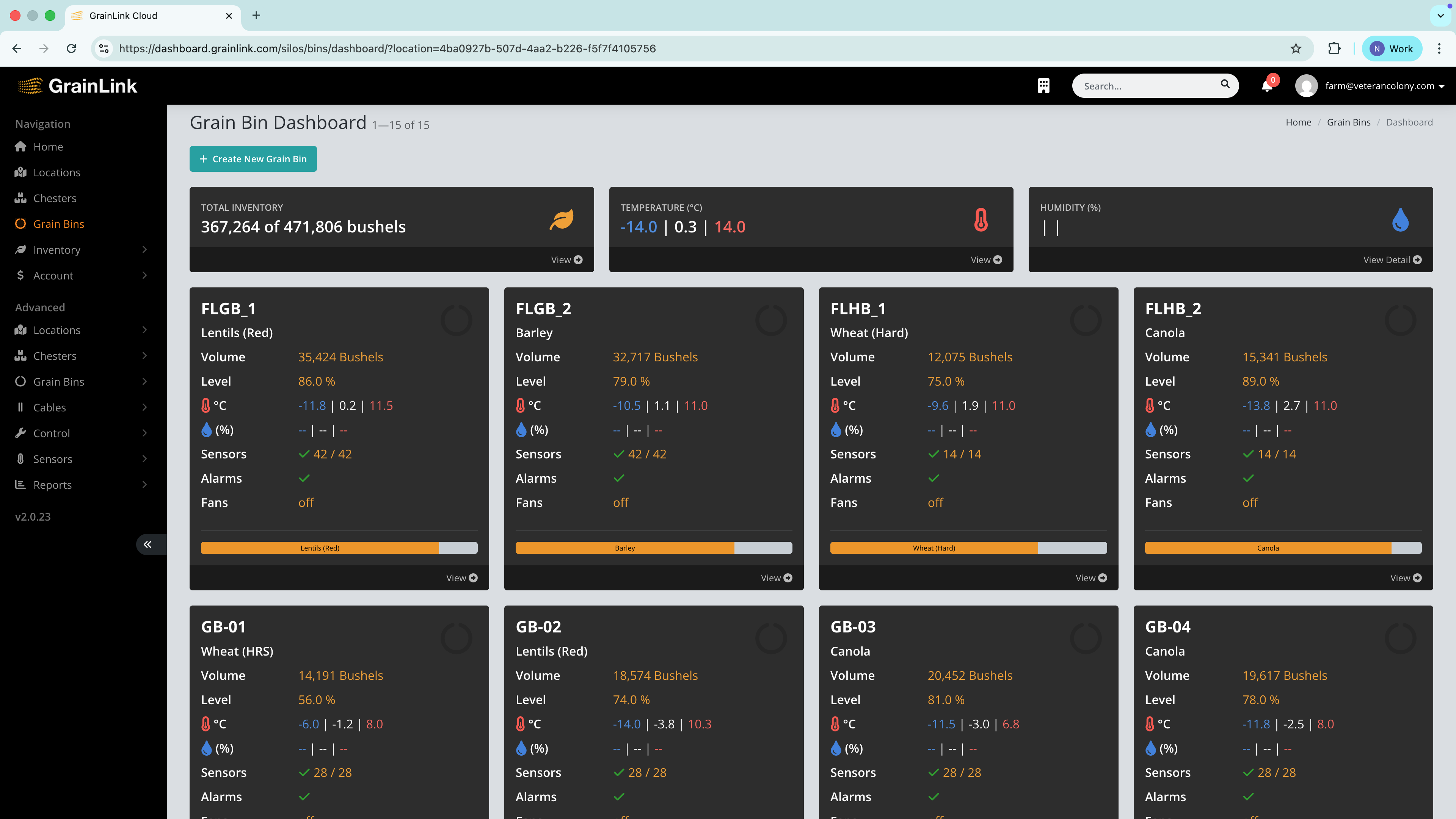

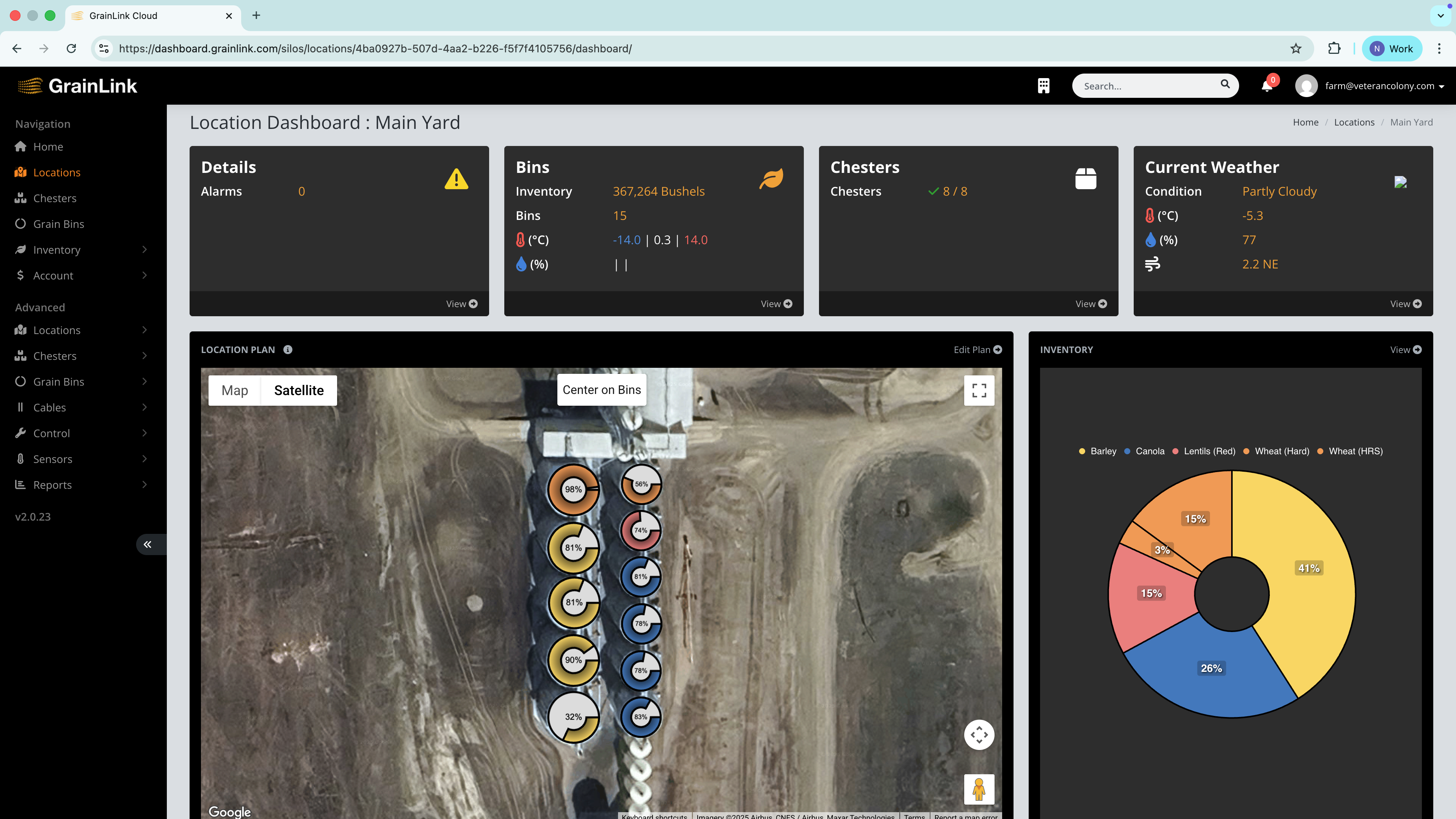

The extensive dashboard is available to all system users, and provides a variety of screens to help user observe and analyze grain production performance
The extensive dashboard is available to all system users, and provides a variety of screens to help user observe and analyze grain production performance
The GrainLink X11 Controller is self-contained device which may be installed anywhere.
Main features include:
- Standalone device each with its own cellular connection
- Solar powered with battery back up.
- Optional standard 6-28VDC direct power input
- 16x 1-wire ports which can manage up to 250 sensors in up to 16 cables.
- internal mini display
- Control up 64 Fans using up to 8 GrainLink Fan Control devices
- Collect up to 64 additional digital inputs using GrainLink Input device
- industrial grade -40°C to +85 °C
- Over the air Software updates
Installation Kit includes:
- 10W 18V Solar Panel
- GrainLink Junction Box
The GrainLink X1 Controller is an optimized self-contained device which may be installed anywhere.
Main features include:
- Standalone device each with its own cellular connection
- Solar powered with battery back up.
- Optional standard 6-28VDC direct power input
- 8x 1-wire ports which can manage up to 150 sensors in up to 8 cables.
- 2 RJ45 ports for quick connecting 4 sensor cables to each port.
- internal mini display
- Control up 64 Fans using up to 8 GrainLink Fan Control devices
- Collect up to 64 additional digital inputs using GrainLink Input device
- industrial grade -40°C to +85 °C
- Over the air Software updates
Installation Kit includes:
- 10W 18V Solar Panel
- GrainLink Junction Box
Fully managed by the GrainLink Dashboard, The FC100 provides manual and remote/automated control of Fan units.
- Includes Chester X1, and IO44 modules, as well as a 110/220 VAC power supply
- Single or multiple (up to 8) fan control options.
- manual override and manual off mode
- IP67 rated
- Ambient temperature and humidity sensors for accurate grain conditioning process.
The junction box is a passive device which provides an easy connect method of grroming up to 8 sensor cables into one multi conductor cable which further connects to the X11 Bin Controller
- 8 1-Wire Sensor cable inputs
- 1 or 2 multi cable outputs
- industrial grade -40°C to +85 °C
The IO 44 Module is a 8 port input/output device which can be used to connect to a variety of digital output sensors such as Bin Full sensor, in addition 4 high voltage that are able to control .
- Connects via 1-wire to the X11 or X1 controller
- Requires +6-28V DC input
- DIN Rail mountable with compatible enclosure
- 4 ports of open/short input
- 4 110/240VAC tolerant relay devices, with NO and NC connections
- industrial grade -40°C to +85 °C
Temperature/Moisture cables. Available from 14′ to 100
CALL for a Quote
